Used worldwide by many leadingcompanies, these premium quality hose are lined, as standard, which Poly TetraFluoro Ethylene( PTFE), in its broad spectrum chemical resistance but with theadvantage of high mechanical strength and low permeability. The inner and outerwire can be galvanized carbon steel or stainless steel 316.
Hose are reinforced withpolypropylene or polyester depending on the required maximum workingtemperature.

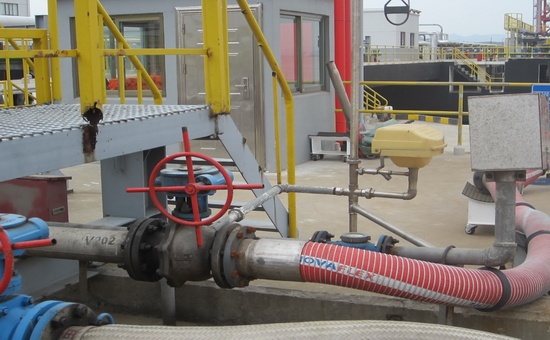

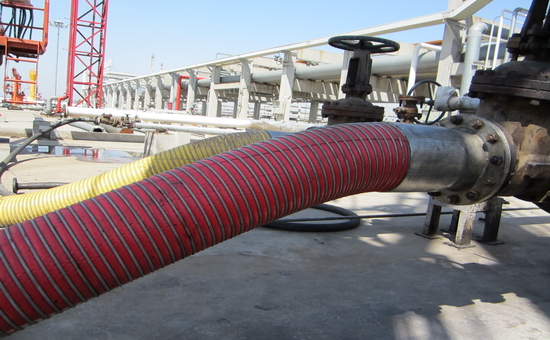

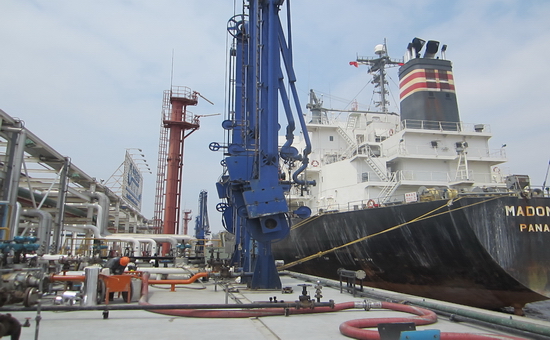

PTFE heavy duty hose are widely usedfor marine cargo hose because of their robust construction and wide chemical resistance.
Where an economical fluoropolymerlined hose is required for light duties (such as road Tanker discharge),customers can consider our, which have a maximum working pressure of 10bar.
SONDAFLEX THPSG, THPSS
Construction
inner Wire spiral: stainless steel 304/stainless steel 316
outer Wire spiral: galvanized steel /stainless steel304/stainless steel 316
inner lining: PTFE
cover: PVC (pp onrequest)
Bore Diameter | Max Working Pressure | Bend Radius | Weight | Max Length | ||
INS | MM | BARS | PSI | MM | KGS/M | MT |
1 | 25 | 14bar | 200PSI | 200 | 1.35 | 30 |
1.5 | 40 | 14bar | 200PSI | 200 | 1.80 | 25 |
2 | 50 | 14bar | 200PSI | 225 | 2.45 | 30 |
2.5 | 65 | 14bar | 200PSI | 225 | 3.20 | 25 |
3 | 80 | 14bar | 200PSI | 350 | 4.20 | 30 |
4 | 100 | 14bar | 200PSI | 400 | 4.90 | 30 |
6 | 150 | 14bar | 200PSI | 575 | 12.90 | 28 |
8 | 200 | 14bar | 200PSI | 800 | 20.10 | 28 |
10 | 250 | 14bar | 200PSI | 1000 | 26.50 | 16 |
12 | 300 | 14bar | 200PSI | 1200 | 31.80 | 16 |
